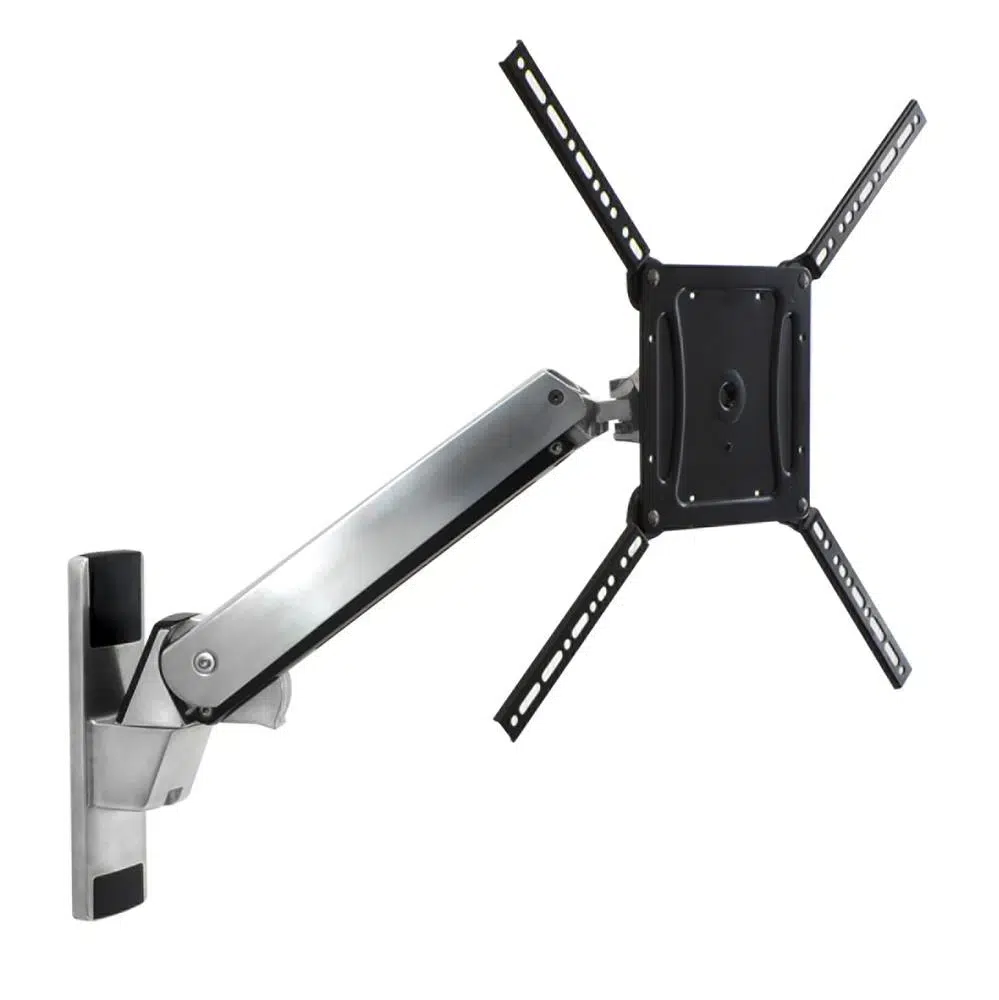

Interactive Arm, VHD

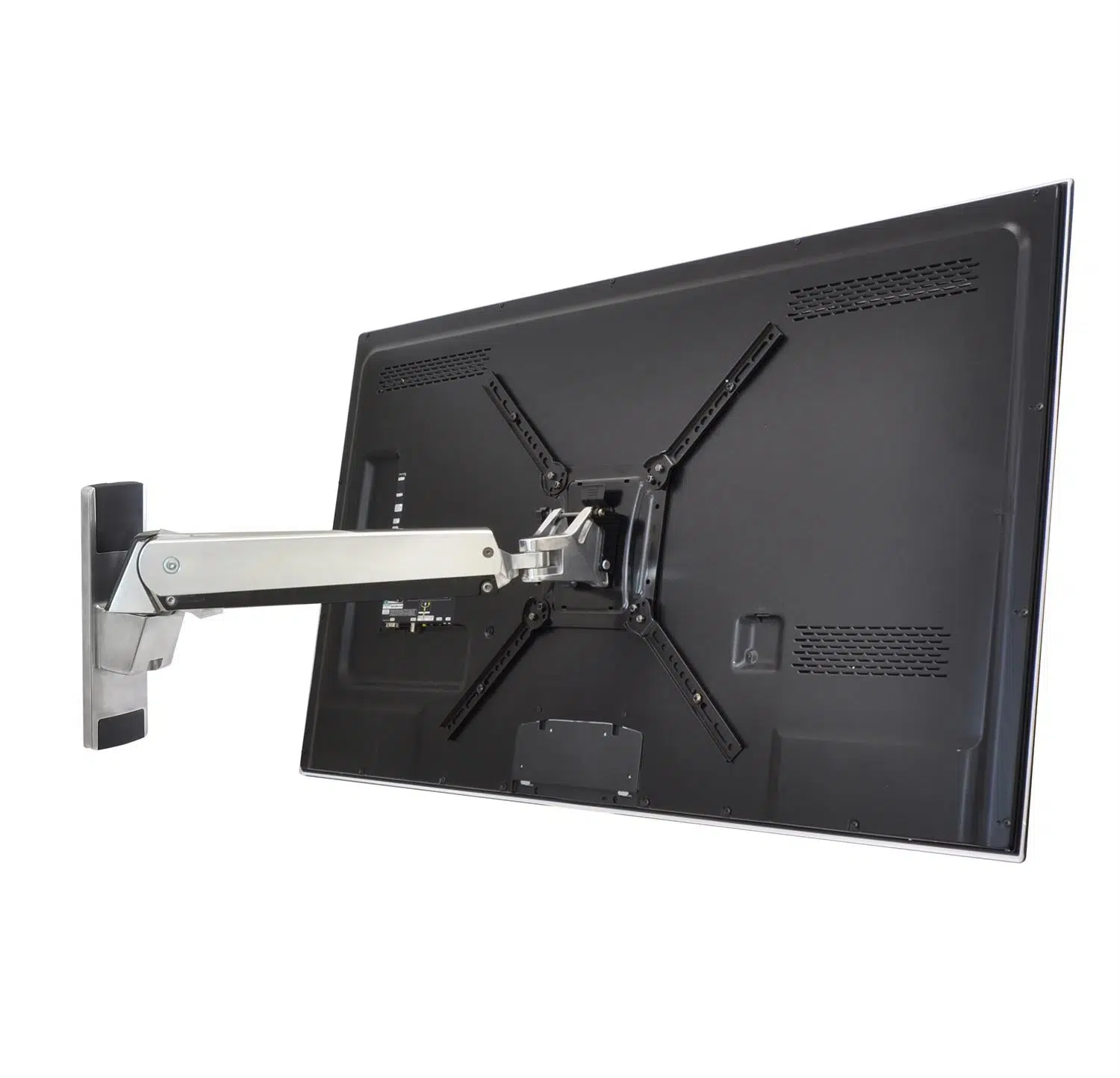

Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 20.75-inch (53 cm) motion to either side. Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
PART NUMBER: 45-304-026
Brand
Deskripsi
Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 20.75-inch (53 cm) motion to either side. Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
PART NUMBER: 45-304-026
Fitur
Manfaat
- Patented Constant Force™ technology enables light-touch adjustments
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Improves ergonomic viewing for heavy displays mounted high on the wall
- Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
- Tilt and pan for maximum viewing flexibility
- Cable management clips on the underside of the arm to route and hide cords
- Passes Ergotron’s 7,500-cycle motion test, ensuring years of trouble-free height adjustment
Spesifikasi
| Product Weight | 12.1 kg |
| Shipping Weight | 13.3 kg |
| Part Number | 45-304-026 |
| Description | Interactive Arm, VHD, Very Heavy Duty (polished aluminum). Includes arm, wall mount bracket, VESA adapter brackets, complete hardware kit. Tilts forward 15°, tilts back 10°. To fix the tilt position of the display, use the lock-down knob on the gravity pivot. Rotates +/-5° for leveling adjustment of screen in any position. Extends 28″ (71 cm) from wall when in use and retracts to 6.5″ (17 cm) when not in use. |
| Mounting Standards | VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200–600 mm by 200–400 mm). |
| Shipping Dimensions | 30.5″ x 13″ x 8″ (77.5 x 33 x 20 cm). |
| Warranty | Five years. |
